All Manufacturers | Power Unit | Solar Panel | 30-Watt, 12 Volt Solar Panel w/ Mounting Hardware

Keep your boat lift battery in top condition and ready to use at any time with the most powerful 30w-12v Boat Lift Solar Charging Kit. Designed for heavy boat lifts and heavy-duty use, this kit is the best solution for charging 12v DC boat lift systems using a single 12v battery or dual 12v batteries wired in parallel. The added power ensures better performance even on cloudy days, keeping your boat lift battery charged and ready to go so the DC lift motor has the power to raise and lower your boat every time. Illustrated instructions ensure fast and simple installation, and we also offer a video for additional reference.

Durable Construction: The 30w-12v Boat Lift Solar Charging Kit is built to last using only the best materials to withstand harsh marine environments and UV radiation. The easily-adjustable anodized aluminum mounting arm resists corrosion and withstands high winds and storms. Lake Lite's high-quality solar panels are rated for 20+ years of life, emphasizing cell quality, reliability, and longevity. These monocrystalline cell panels offer superb low lighting performance, long lifespan, high durability, and reliability. The modules are sealed with low iron tempered glass and anodized aluminum alloy frames.

Ideal for Various Uses: With a lift capacity of up to 10,000 lbs, this kit is perfect for frequent or daily users. It handles the task of raising and lowering your boat when you need it most.

Key Features & Benefits:

• High-Efficiency Mono-Crystalline Solar Cells: Superior efficiency for reliable performance.
• Anodized Aluminum Frame: Durable and corrosion-resistant.
• Mounts to Any Boat Lift: Versatile and easy installation.
• 20+ Years Lifetime Panel Rating: Long-lasting solar panels.
• 12v DC Boat Lifts and Boats: Compatible with standard systems.
• Replaceable & Waterproof Wiring: Ensures durability and ease of maintenance.
• Adjustable Angle: Maximizes solar charge efficiency.
• Easy Installation: Quick setup with illustrated instructions.
• HD Arm: Handles storms and high winds effectively.

Boat Lift Solar Charging Kit Includes:

• 30w-12v High-Efficiency Solar Panel
• 12v 5A Solar Charge Regulator with LED Indicators
• 25ft HD Wire & Waterproof Connect
• 3/8" Battery Connection Ring Terminals

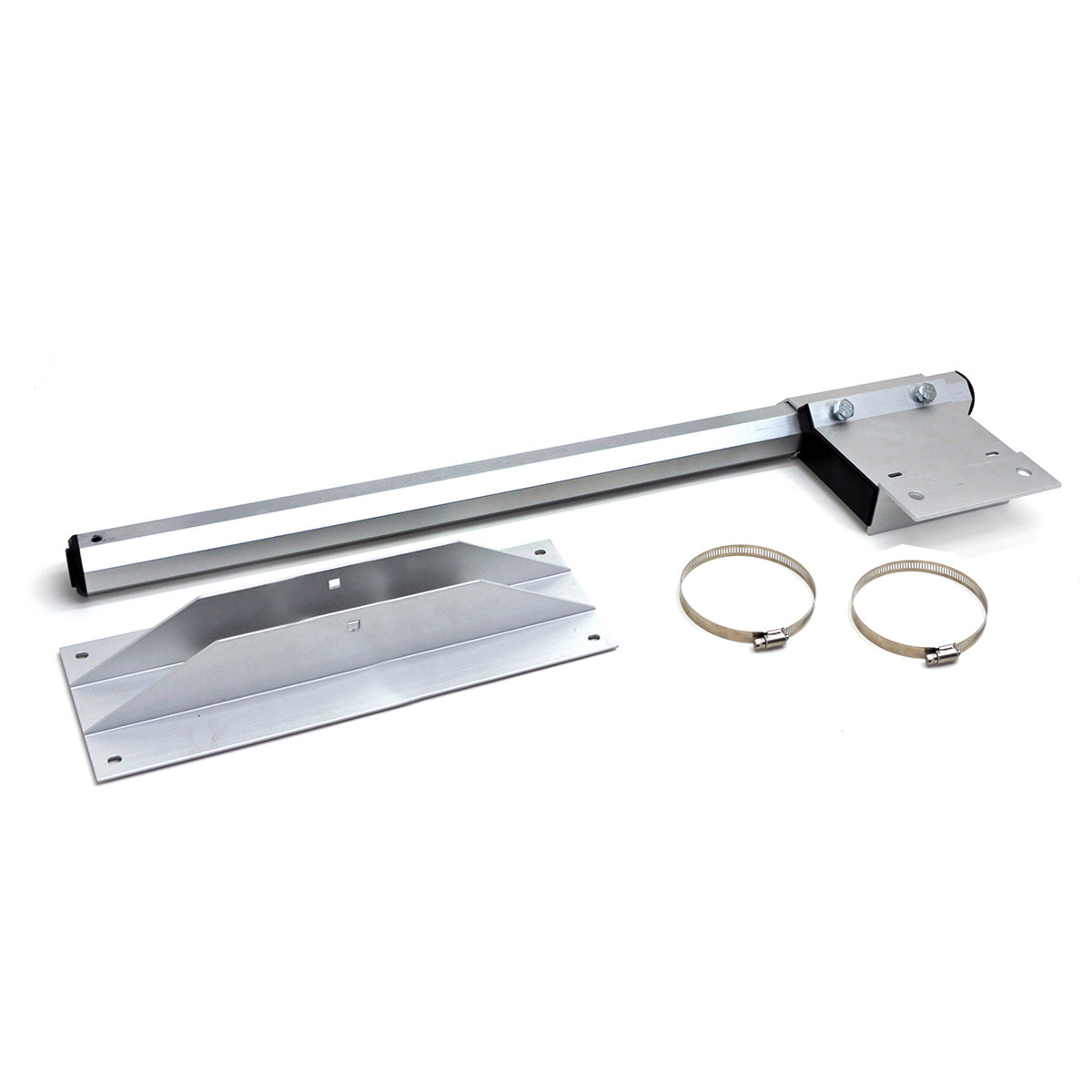

• HD Mounting Arm, Bracket, & Hardware
• Choice of Battery Tray
• 2 Stainless Steel Mounting Straps

Solar Module Specifications:

• Model: LL-SP-30W-12V
• Panel Size: 23-25/64 inches x 17-11/16 inches
• Battery Charging: 12 volt Battery Charging
• Maximum Power (Pmax): 30 watts
• Rated Voltage: 18 volts
• Rated Current (Imp): 1.67 amps
• Open Circuit Voltage (Voc): 21.6 volts
• Optimized Cell Efficiency (%): 17.2%
• Max System Voltage: 600 v DC
• Test Conditions: AM 1.5, 1000 w/m², 25°C
