All Manufacturers | Power Unit | Solar Panel | 20-Watt, 24 Volt Solar Panel w/ Mounting Hardware

The advanced 20w-24v Boat Lift Solar Charging Kit provides extra power and is a robust solution for charging 24v DC boat lift systems using two 12v batteries in a 24-volt configuration. The added power ensures better performance even on cloudy days, allowing for higher usage. Our high-quality solar panel keeps your boat lift battery in top condition, ensuring the DC lift motor has the power to raise and lower your boat efficiently. The kit includes all necessary wiring, including an 18" jumper cable to connect two 12v batteries, solar panel extension wire, connector wires, and a 24v Solar Charge Regulator. Compared to 12v systems, the 24v setup provides more than double the speed in raising and lowering a boat hoist.

Durable Construction: The 20w-24v Boat Lift Solar Charging Kit is constructed to last using only the best materials to withstand harsh marine environments and UV radiation. The easily-adjustable anodized aluminum mounting arm resists corrosion and withstands high winds and storms. The high-quality solar panels are rated for 20+ years of life, emphasizing cell quality, reliability, and longevity. These monocrystalline cell panels offer superb low lighting performance, long lifespan, high durability, and reliability. The modules are sealed with low iron tempered glass and anodized aluminum alloy frames.

Ideal for Various Uses: With a lift capacity of up to 10,000 lbs, this kit is ideal for daily and heavy users with light to heavy-weight boats. It handles the task of raising and lowering your boat when you need it most.

Key Features & Benefits:

• High-Efficiency Mono-Crystalline Solar Cells: Superior efficiency for reliable performance.
• Anodized Aluminum Frame: Durable and corrosion-resistant.
• Mounts to Any Boat Lift: Versatile and easy installation.
• 20+ Years Lifetime Panel Rating: Long-lasting solar panels.
• 24v DC Boat Lifts and Boats: Compatible with standard systems.
• Replaceable Wiring & Quick Waterproof: Ensures durability and ease of maintenance.
• Adjustable Angle: Maximizes solar charge efficiency.
• Easy Installation: Quick setup with illustrated instructions.
• HD Arm: Handles storms and high winds effectively.

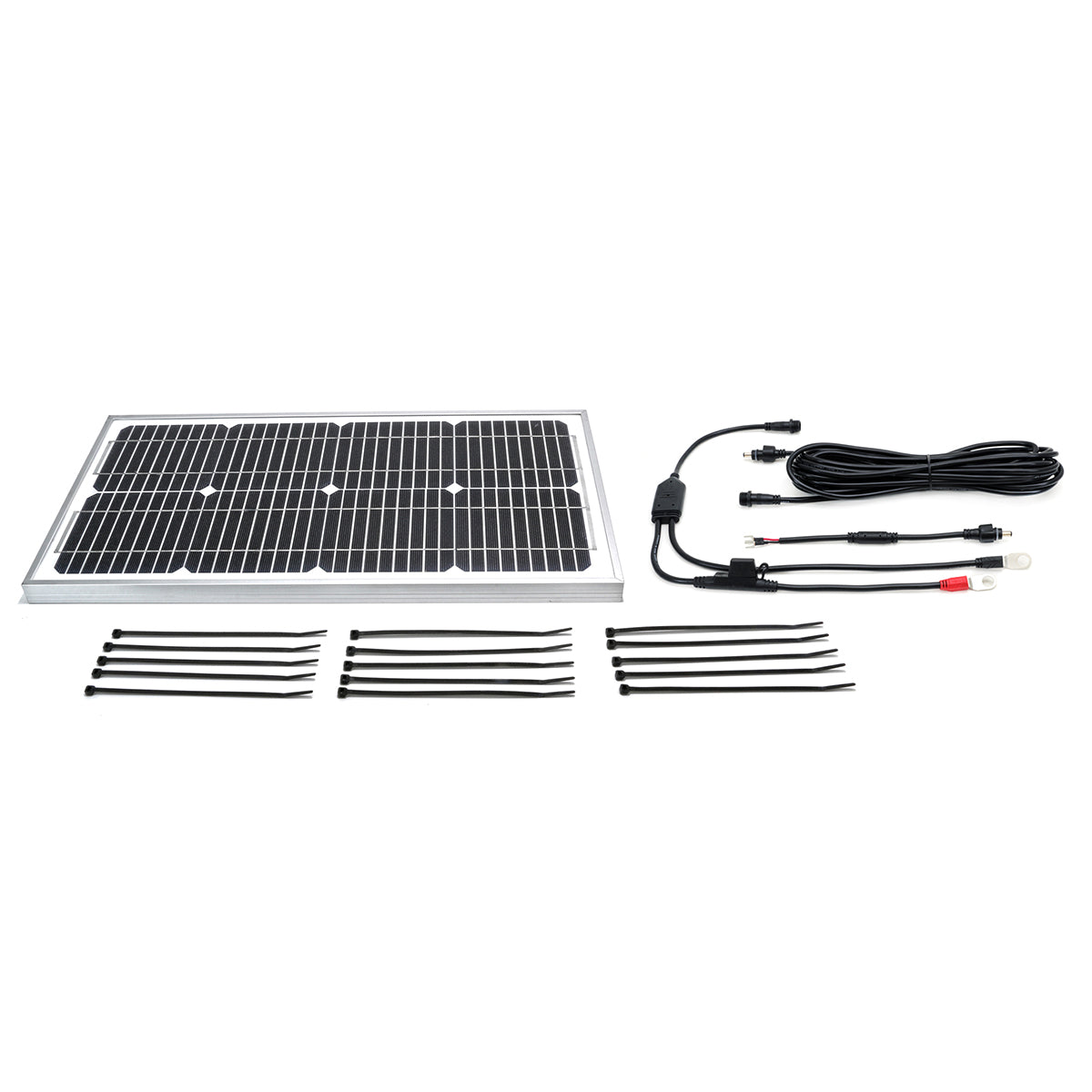

Boat Lift Solar Charging Kit Includes:

• 20w-24v High-Efficiency Solar Panel
• 25ft HD Wire & Waterproof System
• 3/8" Battery Connection Ring Terminals

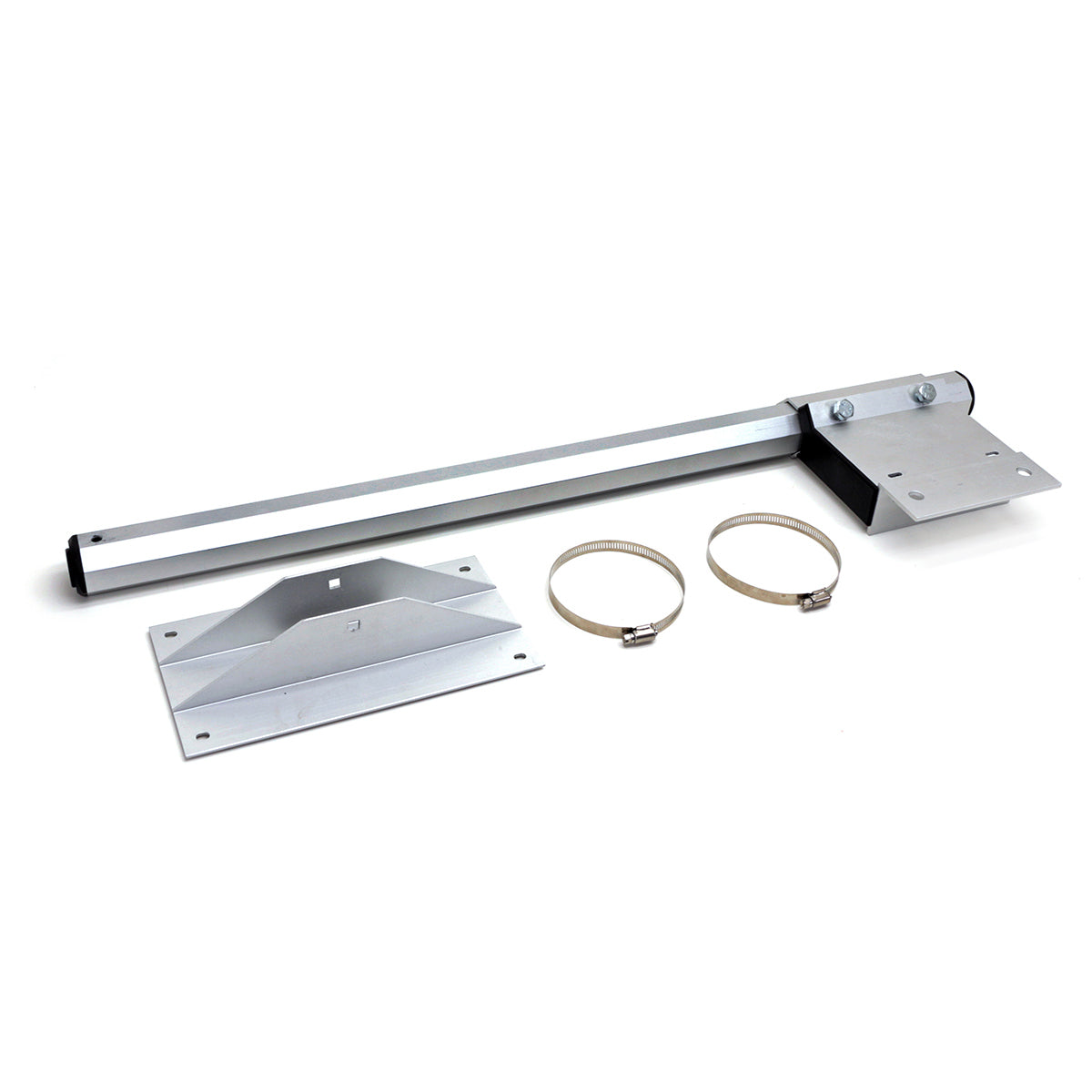

• HD Mounting Arm, Bracket, & Hardware
• Choice of Battery Tray
• 24v HD Solar Charge Regulator
• Instructions & Wiring Diagram
• 2 Stainless Steel Mounting Straps

• 24v Battery Jumper Cable

Solar Module Specifications:

• Model: LL-SP-20W-24V
• Panel Size: 11-29/64 inches x 22-1/4 inches
• Battery Charging: 24 volt Battery Charging
• Maximum Power (Pmax): 20 watts
• Rated Voltage: 36 volts
• Rated Current (Imp): 0.56 amps
• Open Circuit Voltage (Voc): 21.50 volts
• Optimized Cell Efficiency (%): 17.2%
• Max System Voltage: 600 v DC
• Test Conditions: AM 1.5, 1000 w/m², 25°C
