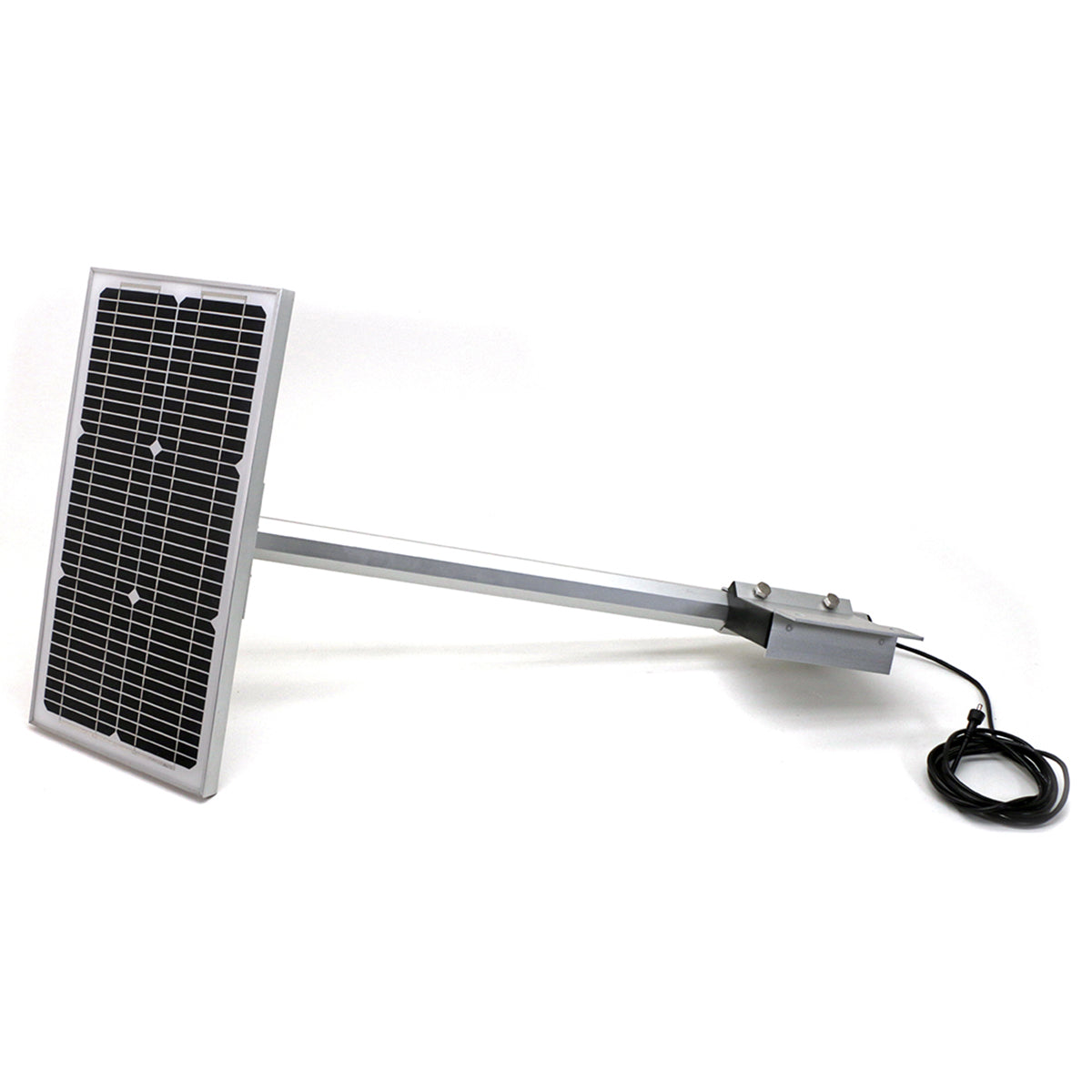

All Manufacturers | Power Unit | Solar Panel | 20-Watt, 12 Volt Solar Panel w/ Mounting Hardware

Keep your boat lift battery in top condition and ready to use at any time with the 20w-12v Boat Lift Solar Charging Kit. As our more advanced charging kit, the 20w-12v Boat Lift Solar Charging Kit provides the perfect charge for 12v DC boat lift systems using a single 12v battery. The added power ensures better performance even on cloudy days, allowing for higher usage. Our high-quality solar panel maintains your boat lift battery in top condition, ensuring the DC lift motor has the power to raise and lower your boat.

Durable Construction: The 20w-12v Boat Lift Solar Charging Kit is constructed to last using only the best materials to withstand harsh marine environments and UV radiation. The easily-adjustable anodized aluminum mounting arm resists corrosion and withstands high winds and storms. The high-quality solar panels are rated for 20+ years of life, emphasizing cell quality, reliability, and longevity. These monocrystalline cell panels offer superb low lighting performance, long lifespan, high durability, and reliability. The modules are sealed with low iron tempered glass and anodized aluminum alloy frames.

Ideal for Various Uses: With a lift capacity of up to 10,000 lbs, this kit is perfect for the frequent or daily user. It handles the task of raising and lowering your boat when you need it most.

Key Features & Benefits:

• High-Efficiency Mono-Crystalline Solar Cells: Superior efficiency for reliable performance.
• Anodized Aluminum Frame: Durable and corrosion-resistant.
• Mounts to Any Boat Lift: Versatile and easy installation.
• 20+ Years Lifetime Panel Rating: Long-lasting solar panels.
• 12v DC Boat Lifts and Boats: Compatible with standard systems.
• Replaceable Wiring & Waterproof System: Ensures durability and ease of maintenance.
• Adjustable Angle: Maximizes solar charge efficiency.
• Easy Installation: Quick setup with illustrated instructions.
• HD Arm: Handles storms and high winds effectively.

Boat Lift Solar Charging Kit Includes:

• 20w-12v High-Efficiency Solar Panel
• 12v 5A HD Solar Charge Regulator with LED Indicators
• 20ft HD Wire & Waterproof Connect
• 3/8" HD Battery Connection Ring Terminals

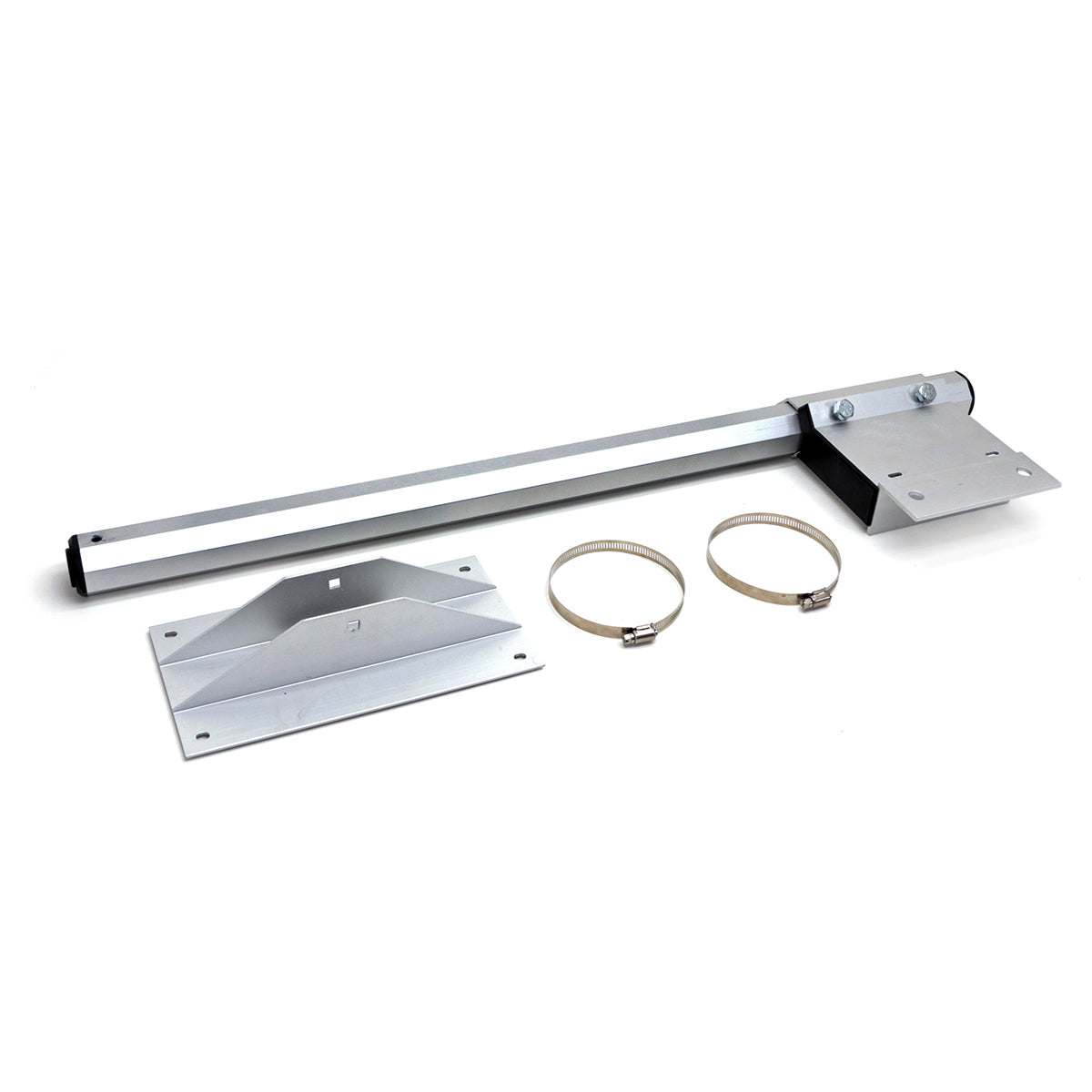

• HD Mounting Arm, Bracket, & Hardware
• Choice of Battery Tray
• 2 Stainless Steel Mounting Straps
• Instructions & Wiring Diagram

Solar Module Specifications:

• Model: LL-SP-20w-12v
• Panel Size: 11-29/64 inches x 22-1/4 inches
• Battery Charging: 12 volt Battery Charging
• Maximum Power (Pmax): 20 watts
• Rated Voltage: 18 volts
• Rated Current (Imp): 1.12 amps
• Open Circuit Voltage (Voc): 21.50 volts
• Optimized Cell Efficiency (%): 17.2%
• Max System Voltage: 600 v DC
• Test Conditions: AM 1.5, 1000 w/m², 25°C
