All Manufacturers | Power Unit | Solar Panel | 15-Watt, 12 Volt Solar Panel w/ Mounting Hardware

15w-12v Boat Lift Solar Charging Kit

Keep your boat lift battery in top condition and ready to use at any time with the 15w-12v Boat Lift Solar Charging Kit. One of our most popular charging kits, the 15w-12v Boat Lift Solar Charging Kit, is perfect for 12v DC boat lift systems using a single 12v battery. Illustrated instructions ensure fast and simple installation, and we also offer a video for additional reference.

Durable Construction: The 15w-12v Boat Lift Solar Charging Kit is constructed to last using only the best materials to withstand harsh marine environments and UV radiation. The easily adjustable anodized aluminum mounting arm resists corrosion and has the strength to withstand high winds and storms. The high-quality solar panels are rated for 20+ years of life, emphasizing cell quality, reliability, and longevity. These monocrystalline cell panels offer superb low lighting performance, long lifespan, high durability, and reliability. The modules are sealed with low iron tempered glass and anodized aluminum alloy frames.

Ideal for Various Uses: With a lift capacity of up to 6000 lbs, this kit is perfect for the average weekend user and light to medium-weight boats. For heavier boats or more frequent use, consider our larger 20-watt panel.

Key Features & Benefits:

• High-Efficiency Mono-Crystalline Solar Cells: Superior efficiency for reliable performance.
• Anodized Aluminum Frame: Durable and corrosion-resistant.

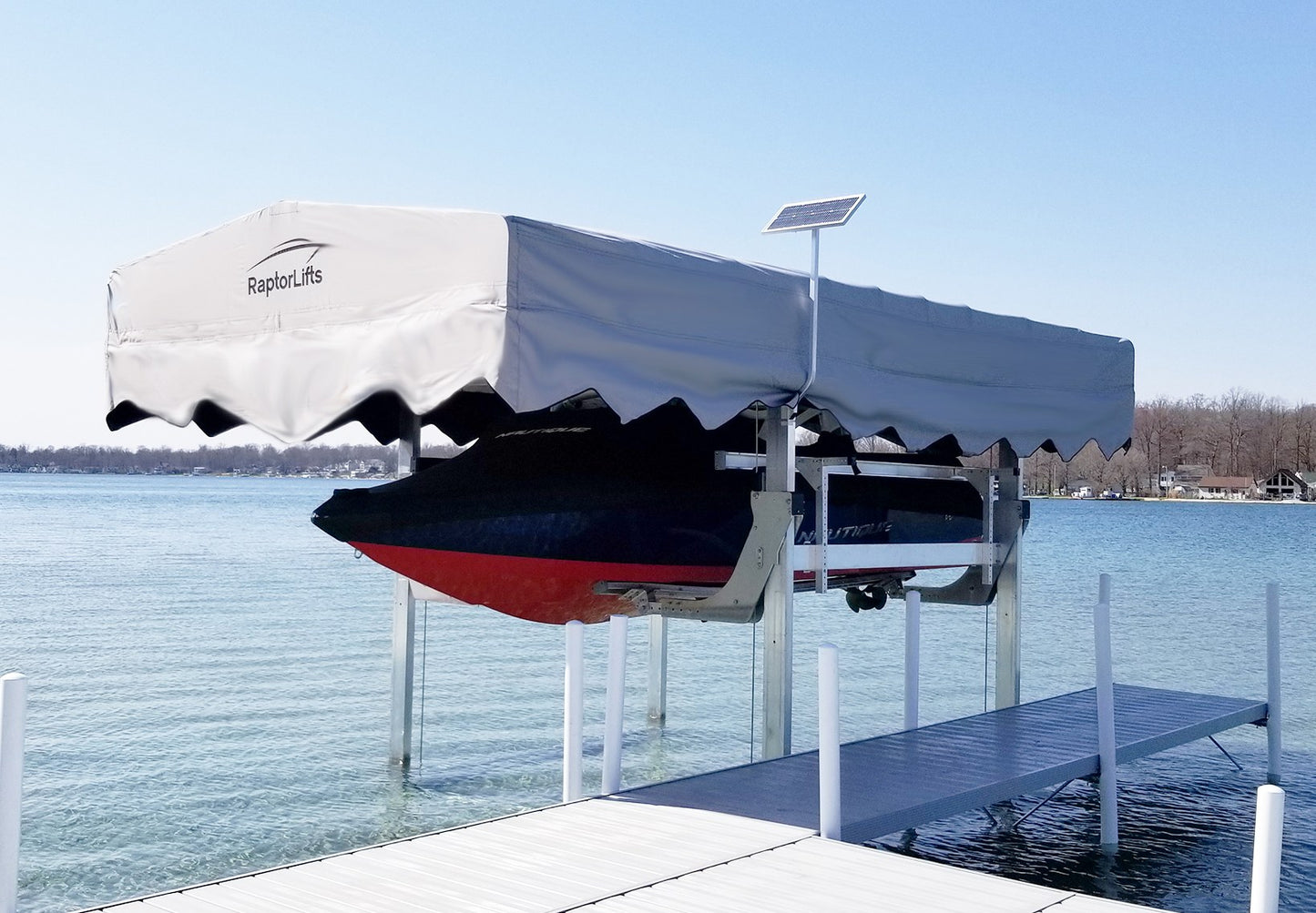

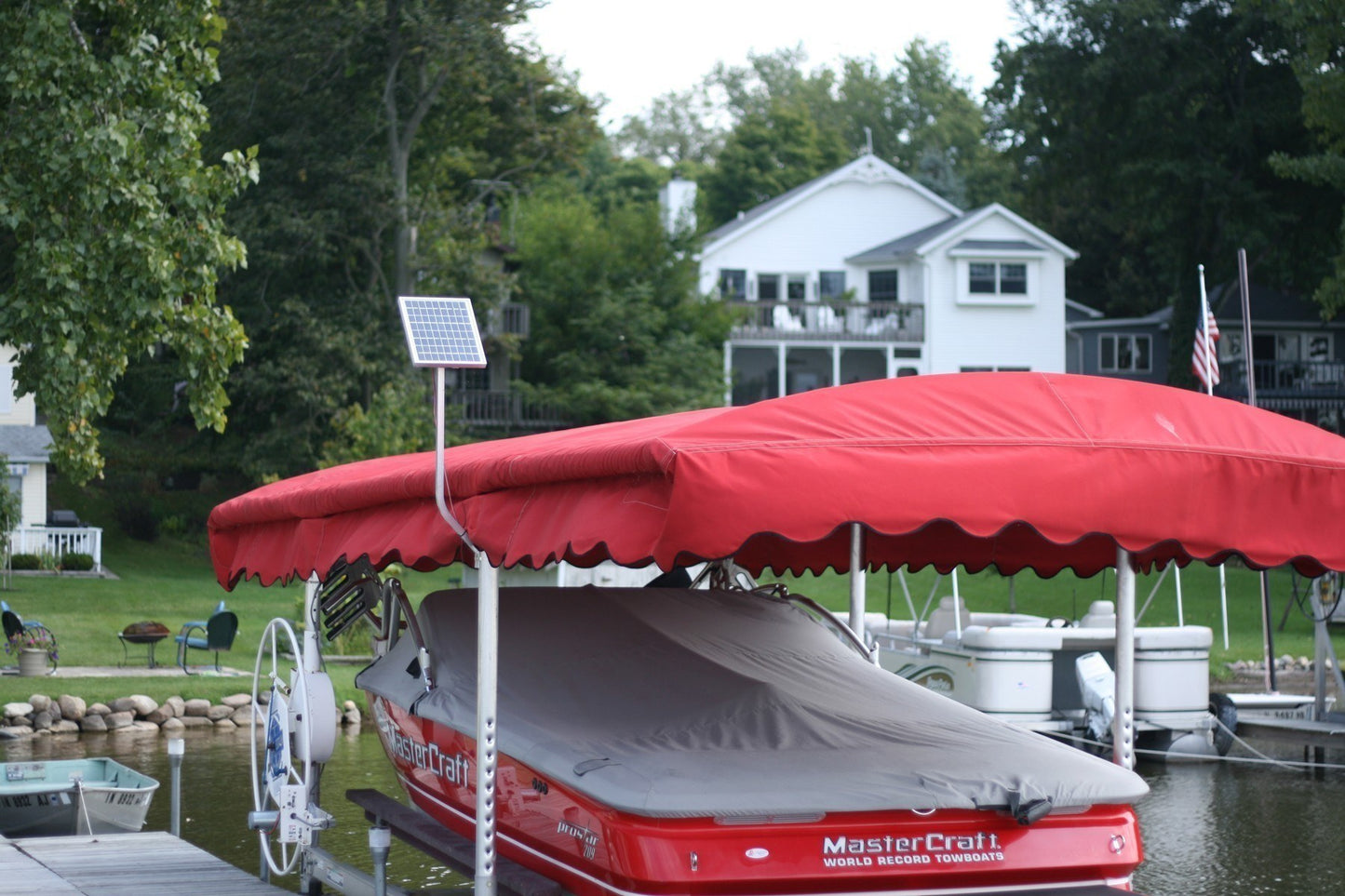

• Mounts to Any Boat Lift: Versatile and easy installation.
• 20+ Years Lifetime Panel Rating: Long-lasting solar panels.
• 12v DC Boat Lifts and Boats: Compatible with standard systems.
• Replaceable Wiring & Quick Connect System: Ensures durability and ease of maintenance.
• Adjustable Angle: Maximizes solar charge efficiency.
• Easy Installation: Quick setup with illustrated instructions.
• HD Arm: Handles storms and high winds effectively.

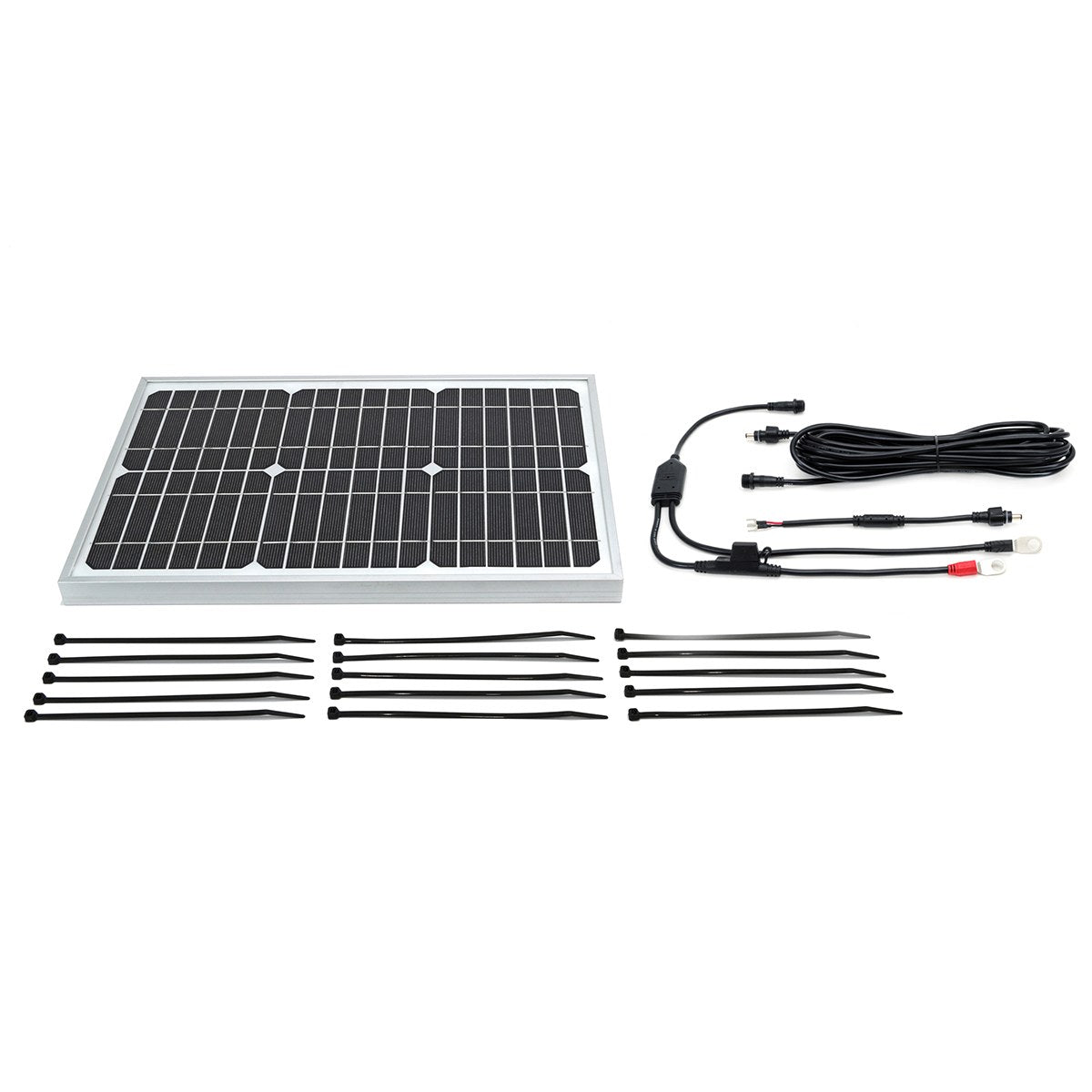

Boat Lift Solar Charging Kit Includes:

• 15w-12v High-Efficiency Solar Panel
• 20ft HD Wiring & Waterproof System
• 3/8" Battery Connection Ring Terminals

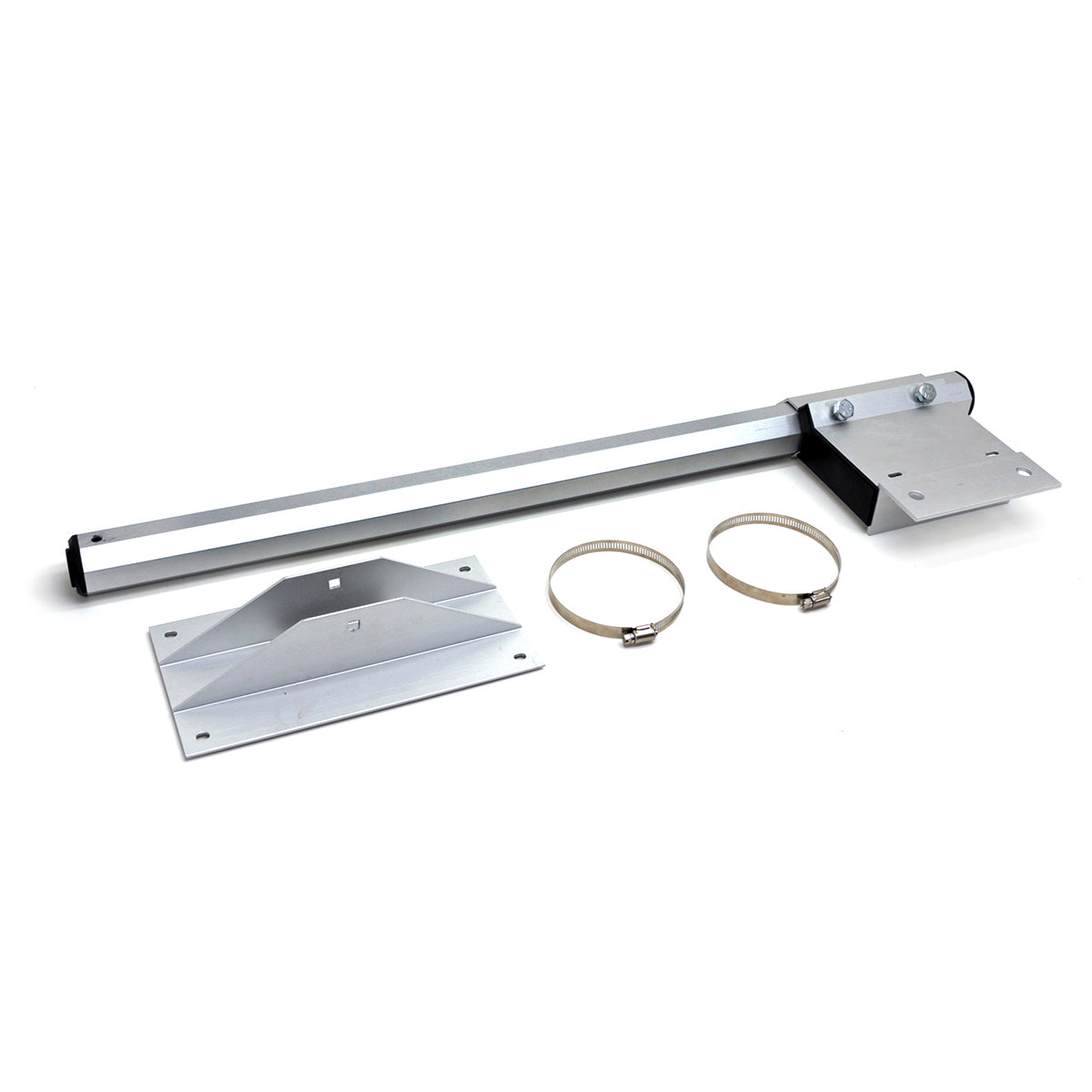

• HD Mounting Arm, Bracket, & Hardware
• Choice of Battery Tray
• 2 Stainless Steel Mounting Straps
• Instructions & Wiring Diagram

• Free Battery Status Indicator

Solar Module Specifications:

• Model: LL-SP-15w-12v
• Panel Size: 11-29/64 inches x 17-21/64 inches
• Battery Charging: 12-volt Battery Charging
• Maximum Power (Pmax): 15 watts
• Rated Voltage: 18 volts
• Rated Current (Imp): 0.84 amps
• Open Circuit Voltage (Voc): 21.50 volts
• Optimized Cell Efficiency (%): 17.2%
• Max System Voltage: 600 v DC
• Test Conditions: AM 1.5, 1000 w/m², 25°C
