All Manufacturers | Power Unit | Solar Panel | 5-Watt, 12 Volt Solar Panel w/ Mounting Hardware

Our entry-level 5w-12v Boat Lift Solar Charging Kit provides light-duty charging for 12v DC boat lift and PWC systems using a single 12v battery. Lake Lite's Boat Lift Solar Charging Kits feature high-quality solar panels that keep your boat lift battery in top condition, ensuring the DC lift motor has the power to raise and lower your boat or Jet Ski.

Durable Construction: Constructed to withstand harsh marine environments and UV radiation, the 5w-12v Boat Lift Solar Charging Kit uses the best materials, including an easily-adjustable anodized aluminum mounting arm that resists corrosion and withstands high winds and storms. Lake Lite's solar panels are rated for a 20+ year lifespan, emphasizing cell quality, reliability, and longevity. These monocrystalline cell panels offer superb low lighting performance and are sealed with low iron tempered glass and anodized aluminum alloy frames.

Perfect for Light Use: Ideal for users with lift capacities up to 3,000 lbs, this kit is perfect for light weekend use with a light boat or PWC lift. For heavier boats or more frequent use, consider our larger 10, 15, or 20-watt panels.

Key Features & Benefits:

• High-Efficiency Mono-Crystalline Solar Cells: Provides superior efficiency.
• Anodized Aluminum Frame: Durable and corrosion-resistant.
• Mounts to Any Boat Lift: Versatile installation.
• 20+ Years Lifetime Panel Rating: Long-lasting performance.
• 12v DC Boat Lifts and Boats: Compatible with standard systems.
• Replaceable Wiring & Waterproof System: Ensures durability and ease of maintenance.
• Adjustable Angle: Maximizes solar charge.
• Easy Installation: Quick and simple setup.
• HD Arm: Handles storms and high winds.

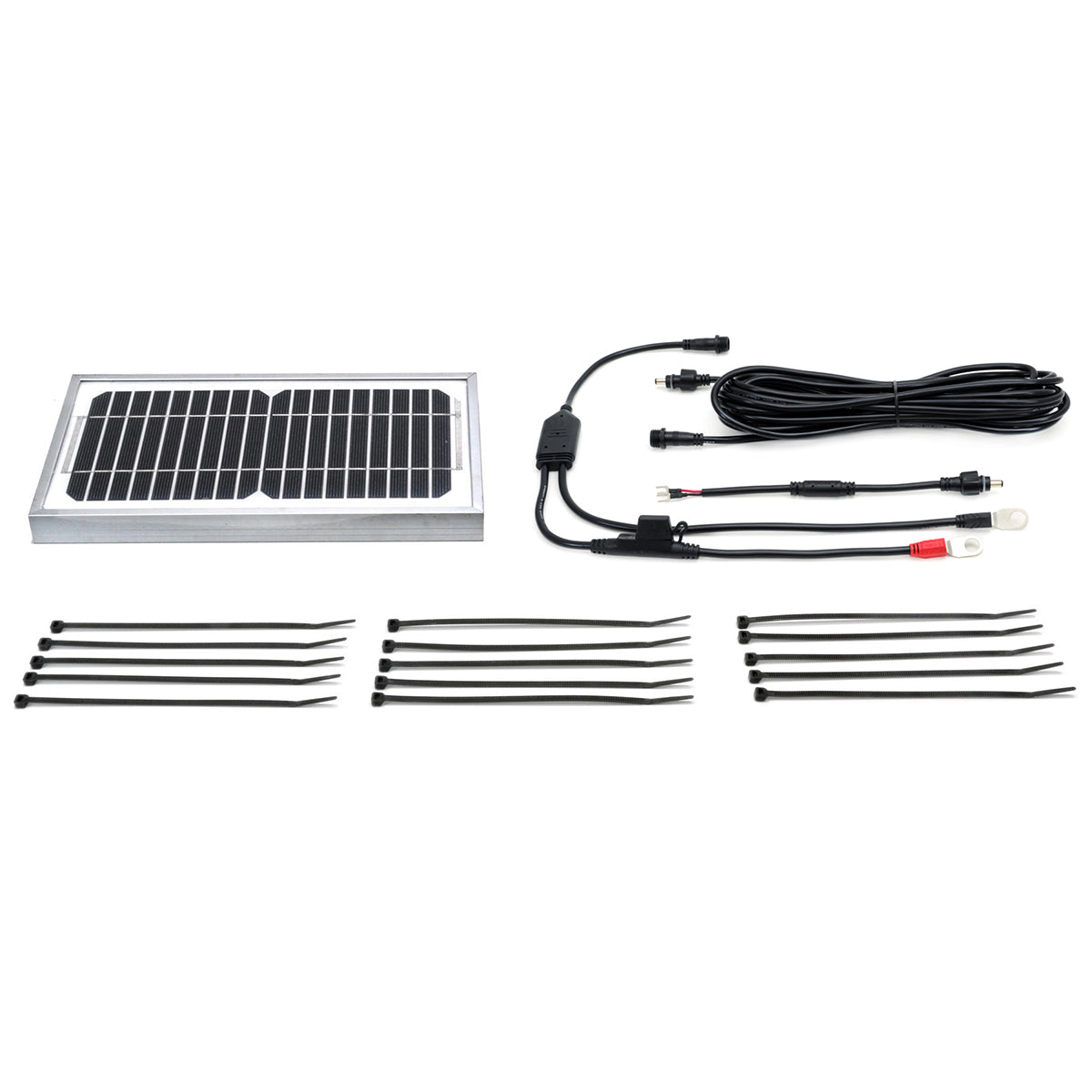

Boat Lift Solar Charging Kit Includes:

• 5w-12v High-Efficiency Solar Panel
• 3/8" Battery Connection Ring Terminals
• Choice of Battery Tray
• Instructions & Wiring Diagram
• Free Battery Status Indicator
• 25ft HD Wire & Waterproof System
• HD Mounting Arm, Bracket & Hardware
• 2 Stainless Steel Mounting Straps

Solar Module Specifications:

• Model: LL-SP-5w-12v
• Panel Size: 6-3/8 inches x 11-21/64 inches
• Battery Charging: 12 volt Battery Charging
• Maximum Power (Pmax): 5 watts
• Rated Voltage: 18 volts
• Rated Current (Imp): 0.28 amps
• Open Circuit Voltage (Voc): 21.50 volts
• Optimized Cell Efficiency (%): 17.2%
• Max System Voltage: 600 v DC
• Test Conditions: AM 1.5, 1000 w/m², 25°C
