All Manufacturers | Power Unit | Solar Panel | 10-Watt, 12 Volt Solar Panel w/ Mounting Hardware

All Manufacturers | Power Unit | Solar Panel | 10-Watt, 12 Volt Solar Panel w/ Mounting Hardware

Regular price $454.81 USD
Regular price Sale price $454.81 USD
Sale Sold out
Shipping calculated at checkout.
Size
Style

Keep your boat lift battery in top condition and ready to use at any time with the 10w-12v Boat Lift Solar Charging Kit. Our most popular charging kit, the 10w-12v Boat Lift Solar Charging Kit, is the perfect solution for 12v DC boat lift systems using a single 12v battery. Illustrated instructions ensure fast and simple installation, and we also offer a video for additional reference.

Durable Construction: The 10w-12v Boat Lift Solar Charging Kit is constructed to last using only the best materials to withstand harsh marine environments and UV radiation. The easily-adjustable anodized aluminum mounting arm resists corrosion and withstands high winds and storms. The high-quality solar panels are rated for 20+ years of life, emphasizing cell quality, reliability, and longevity. These monocrystalline cell panels offer superb low lighting performance, long lifespan, high durability, and reliability. The modules are sealed with low iron tempered glass and anodized aluminum alloy frames.

Ideal for Various Uses: With a lift capacity of up to 4500 lbs, this kit is ideal for the average weekend user and light to medium-weight boats. For heavier boats or more frequent use, consider our larger 15 watt or 20 watt panels.

Key Features & Benefits:

  • High-Efficiency Mono-Crystalline Solar Cells: Superior efficiency for reliable performance.
  • Anodized Aluminum Frame: Durable and corrosion-resistant.
  • Mounts to Any Boat Lift: Versatile and easy installation.
  • 20+ Years Lifetime Panel Rating: Long-lasting solar panels.
  • 12v DC Boat Lifts and Boats: Compatible with standard systems.
  • Replaceable Wiring & Waterproof System: Ensures durability and ease of maintenance.
  • Adjustable Angle: Maximizes solar charge efficiency.
  • Easy Installation: Quick setup with illustrated instructions.
  • HD Arm: Easily handles storms and high winds.

Boat Lift Solar Charging Kit Includes:

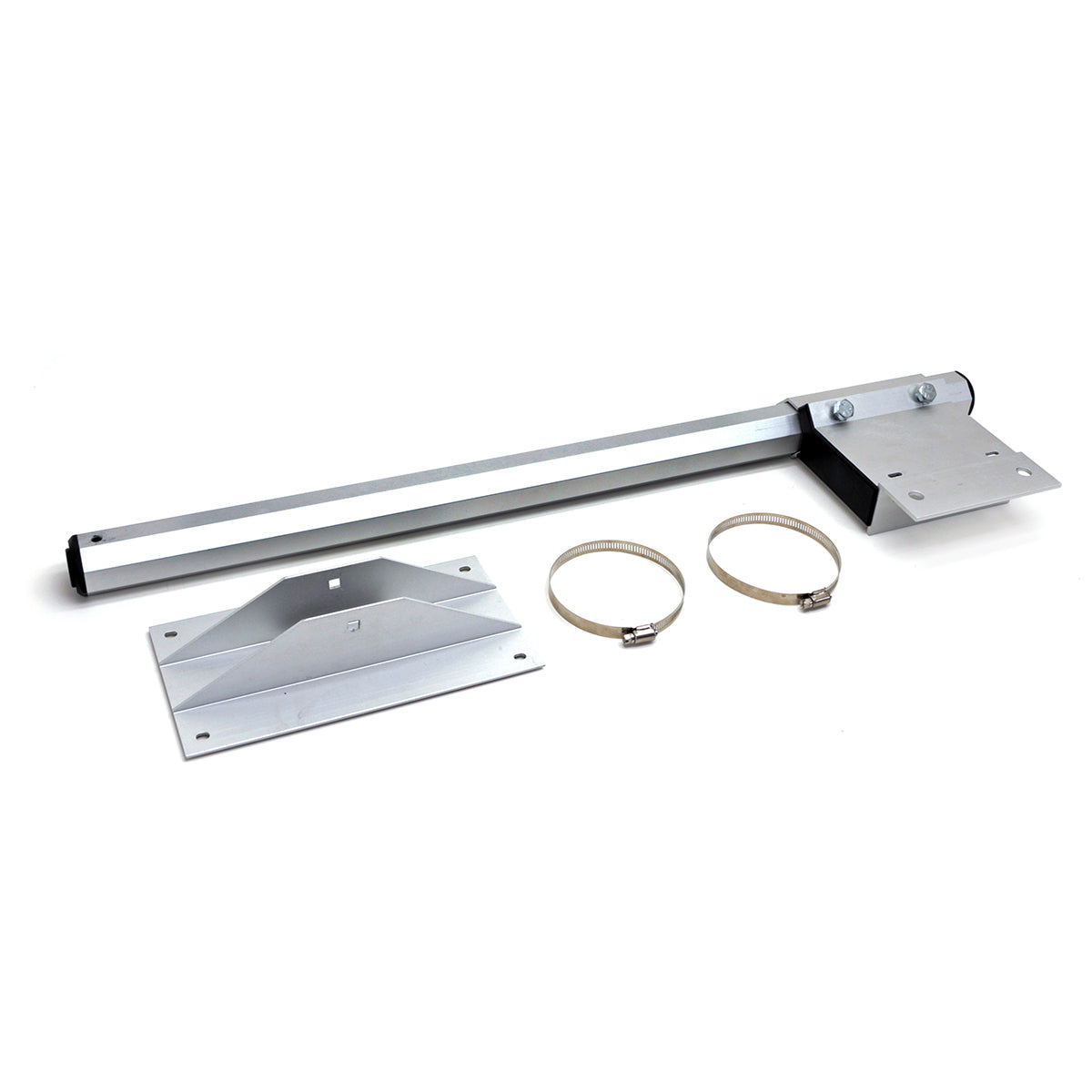

  • HD Mounting Arm, Bracket, & Hardware
  • Choice of Battery Tray
  • 2 Stainless Steel Mounting Straps
  • Instructions & Wiring Diagram
  • Free Battery Status Indicator
  • 10w-12v High-Efficiency Solar Panel
  • 20-feet HD Wiring & Waterproof System
  • 3/8" Battery Connection Ring Terminals

Solar Module Specifications:

  • Model: LL-SP-10w-12v
  • Panel Size: 12 inches x 11-29/64 inches
  • Battery Charging: 12 volt Battery Charging
  • Maximum Power (Pmax): 10 watts
  • Rated Voltage: 18 volts
  • Rated Current (Imp): 0.56 amps
  • Open Circuit Voltage (Voc): 21.50 volts
  • Optimized Cell Efficiency (%): 17.2%
  • Max System Voltage: 600 v DC
  • Test Conditions: AM 1.5, 1000 w/m², 25°C
