All Manufacturers | Dock | Dock Parts | 10" Aluminum Solar Cleat Light

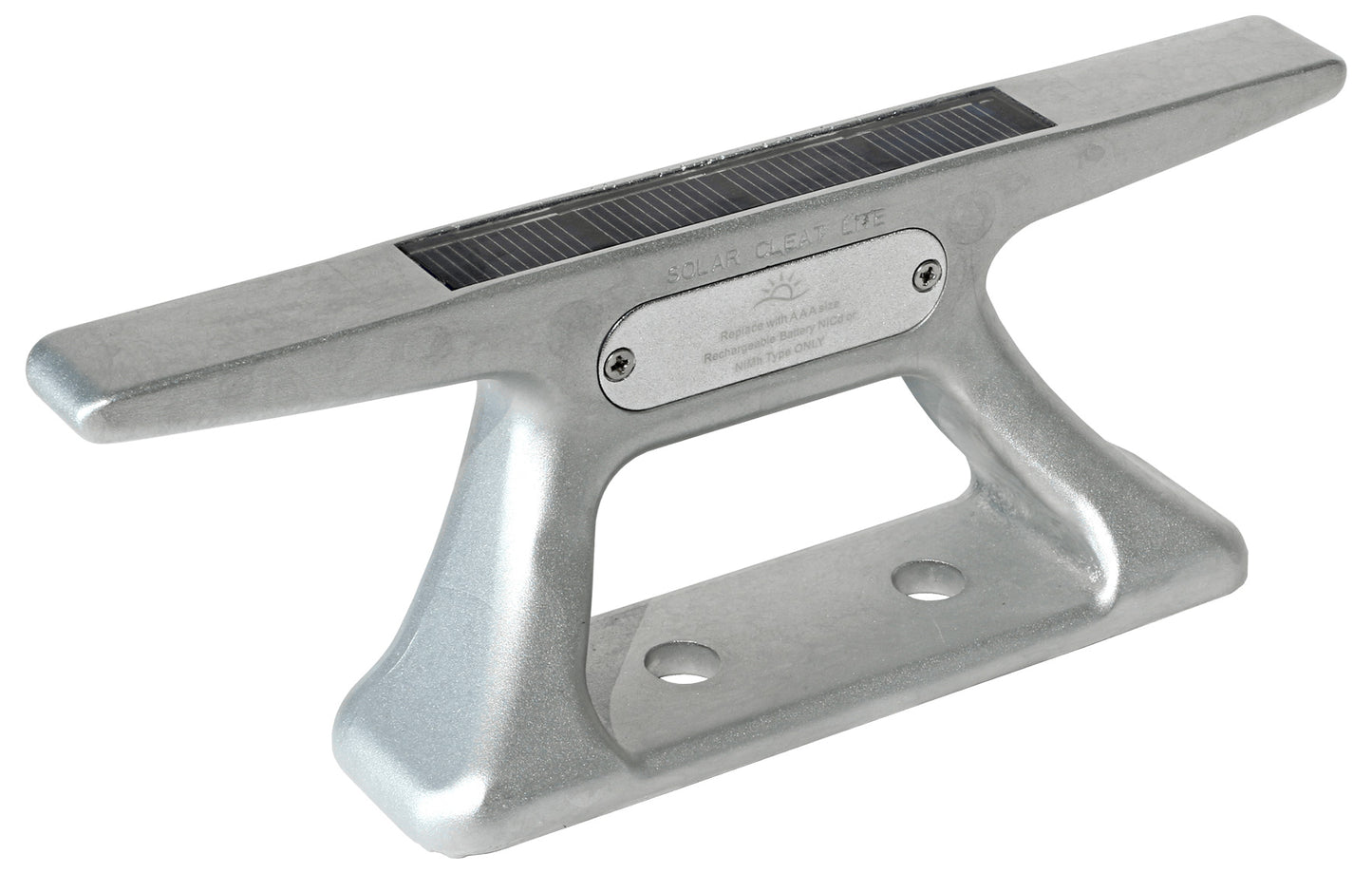

The 10" Aluminum Solar Cleat Light is crafted from durable anodized marine-grade aluminum for superior protection in harsh environments. Its waterproof electronics and protective design ensure longevity, while the high-quality solar panel on the surface stores energy in the included high-grade replaceable battery. An ultra-high intensity white LED provides 16-20 hours of light on a full charge, automatically activating at dusk. The cleat light also features a switch to choose between two brightness settings, allowing users to meet performance requirements or personal preference. Mounting holes are configured for easy installation with standard hardware to any style dock, including various floating docks.

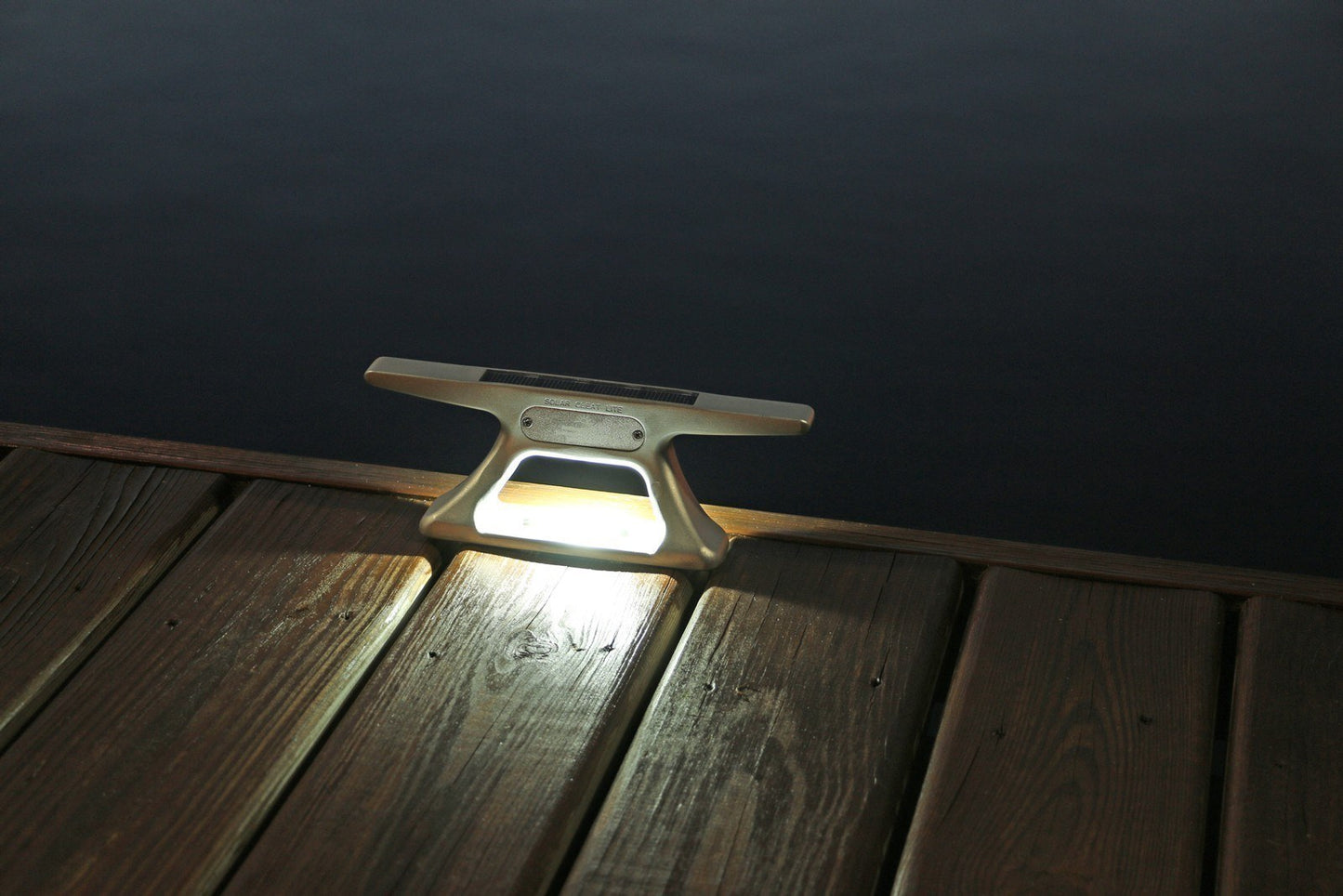

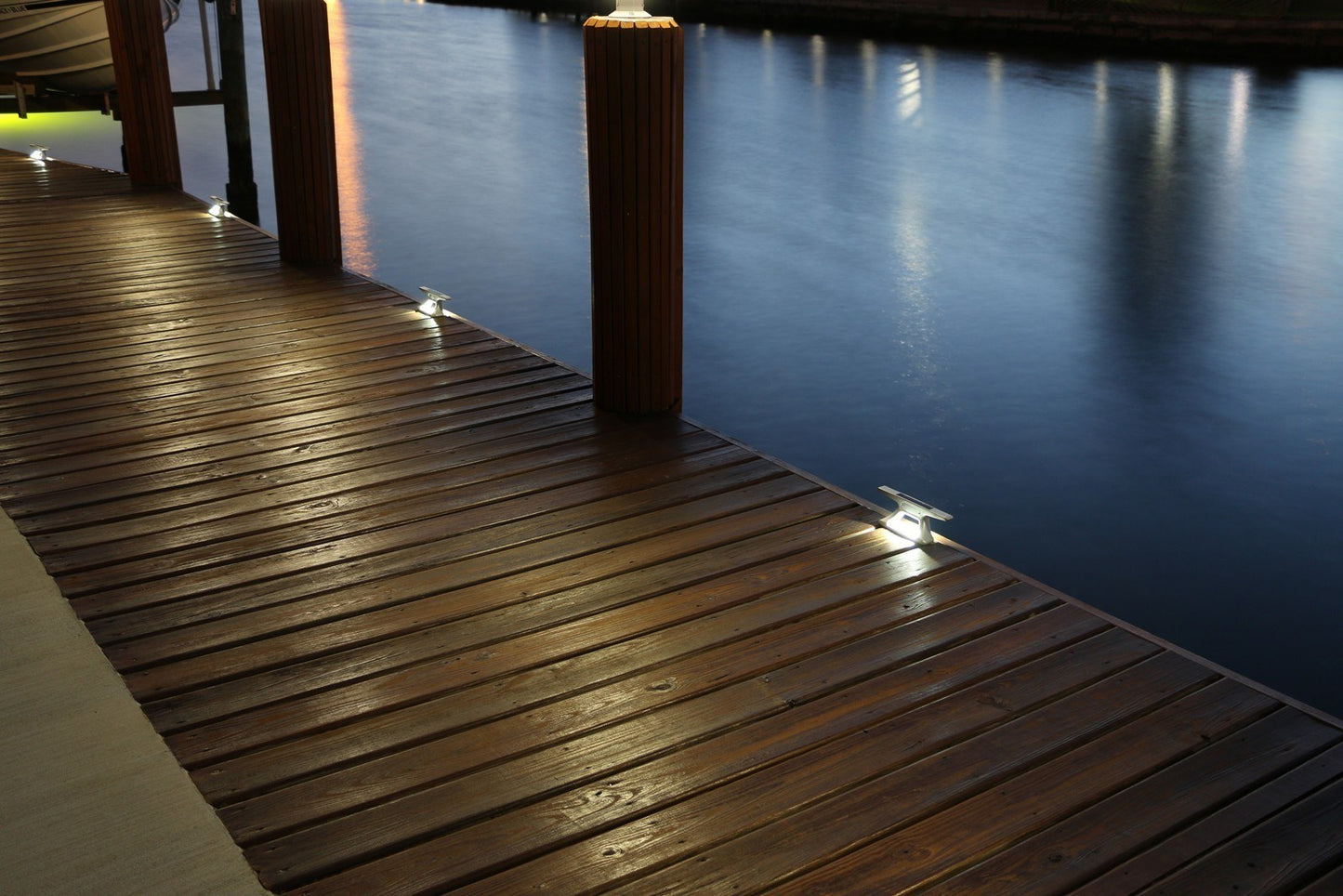

Not only does the cleat light provide durable boat mooring, but it also adds safety by preventing tripping hazards at night and enhancing the elegance of your dock.

Great Applications:

• Boat Docks
• Yacht Clubs
• Boardwalks
• Marinas
• Boat Houses
• EZ Dock Floating Docks

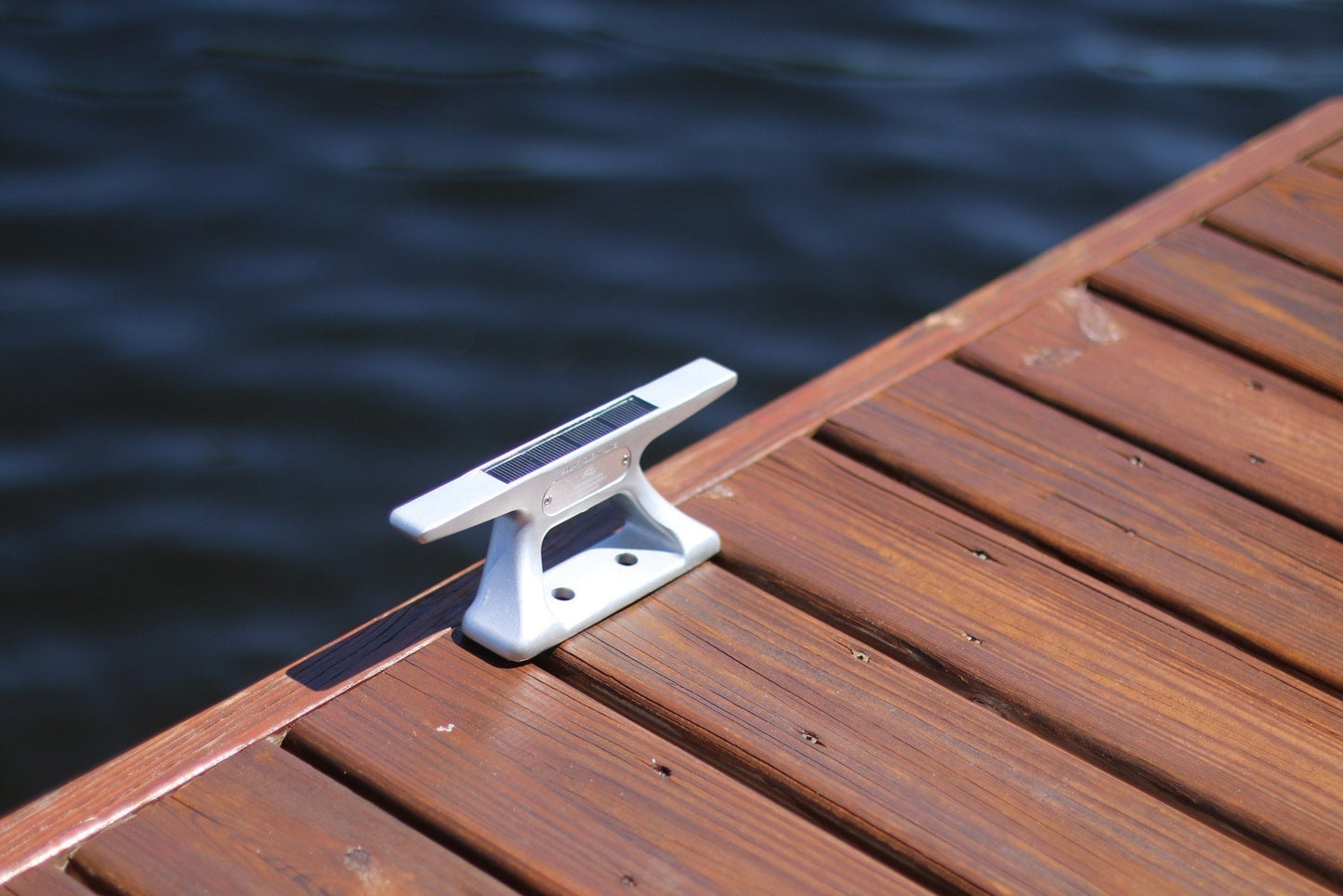

Sleek & Safe: The 10" Aluminum Solar Cleat Light easily mounts to all types of docks, including the EZ-Dock & Wave-Armor brand floating docks.

Key Features & Benefits:

• Run Time: 16-20 hours on a full charge
• Brightness: 8-12 lumens with 6 ultra-high intensity LEDs
• Fresh & Salt Water Rated: Durable in various marine environments

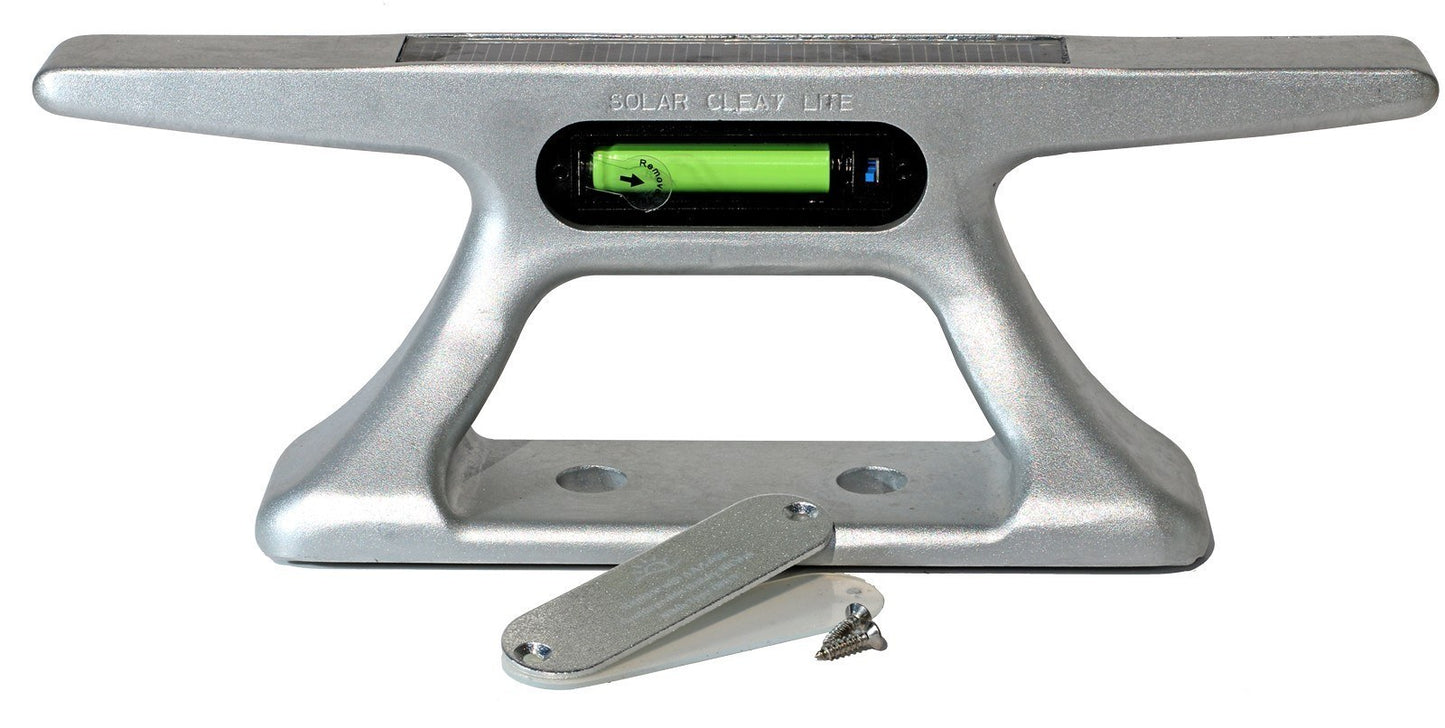

• Changeable Batteries: User-replaceable for long-term use
• Light Source: 6 Ultra High Intensity LEDs
• Lumens Output: 8-12 Lumens* (Varies with Brightness level)
• Available LED Colors: White
• Light Mode Options: Constant
• Visible Range: 50m-300m (Varies with Viewing Angles)
• Horizontal Output (Degrees): 35-45° (Downward)
• LED Life Expectancy (Hours): >100,000 hrs

Electrical Characteristics:

• Circuit Protection: Integrated
• Nominal Voltage: 1.2v
• Autonomy (hours): 16-20 hrs* (On Full Charge)
• Temperature Range: -4 to 158° Fahrenheit

Solar Characteristics:

• Solar Module Type: Multicrystalline or Monocrystalline
• Power (watts): 0.40 watts
• Solar Module Efficiency (%): 16-17%

Power Supply:

• Battery Type: High Grade NiCd or NiMh - ECO Friendly
• Battery Capacity (mAh): 900 mAh
• Nominal Voltage (v): 1.2v / Battery
• Battery Service Life: 1-3 years (Varies with Environment)
• Battery Service Access: Yes: User Changeable/Replaceable

Physical Characteristics:

• Body Material: Die Cast Aluminum
• Lens Material: UV Stabilized Polycarbonate
• External Lens Design: Integrate Convex Optics & Diffusion
• Internal Lens Design: 360° Convex Optics & Diffusion
• Waterproof Rating: IP 68
• Mounting: Any Flat Surface or EZ-Dock Floating Dock
• Height: 3-1/4"
• Width/Diameter: 10"
• Weight: 1.35 lbs
